| No. of cells | 3 - 5 Li-Poly |
| RPM/V | 990 RPM/V |
| Max. efficiency | 85% |
| Max. efficiency current | 15 - 25 A (>76%) |
| No load current | 1,7 A |
| Current capacity | 38 A/60 s |
| Internal Resistance | 59 mohm |
| Dimensions (∅ x L) | 35x46 mm |
| Shaft diameter | 5 mm |
| Weight | 148 g |
| Max. Power | 650 W |
High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 600 - 700 size, and up to 3000 g in weight. Due to it’s high torque this motor is capable of turning large propellers with a high level of efficiency and without the need for a gearbox.

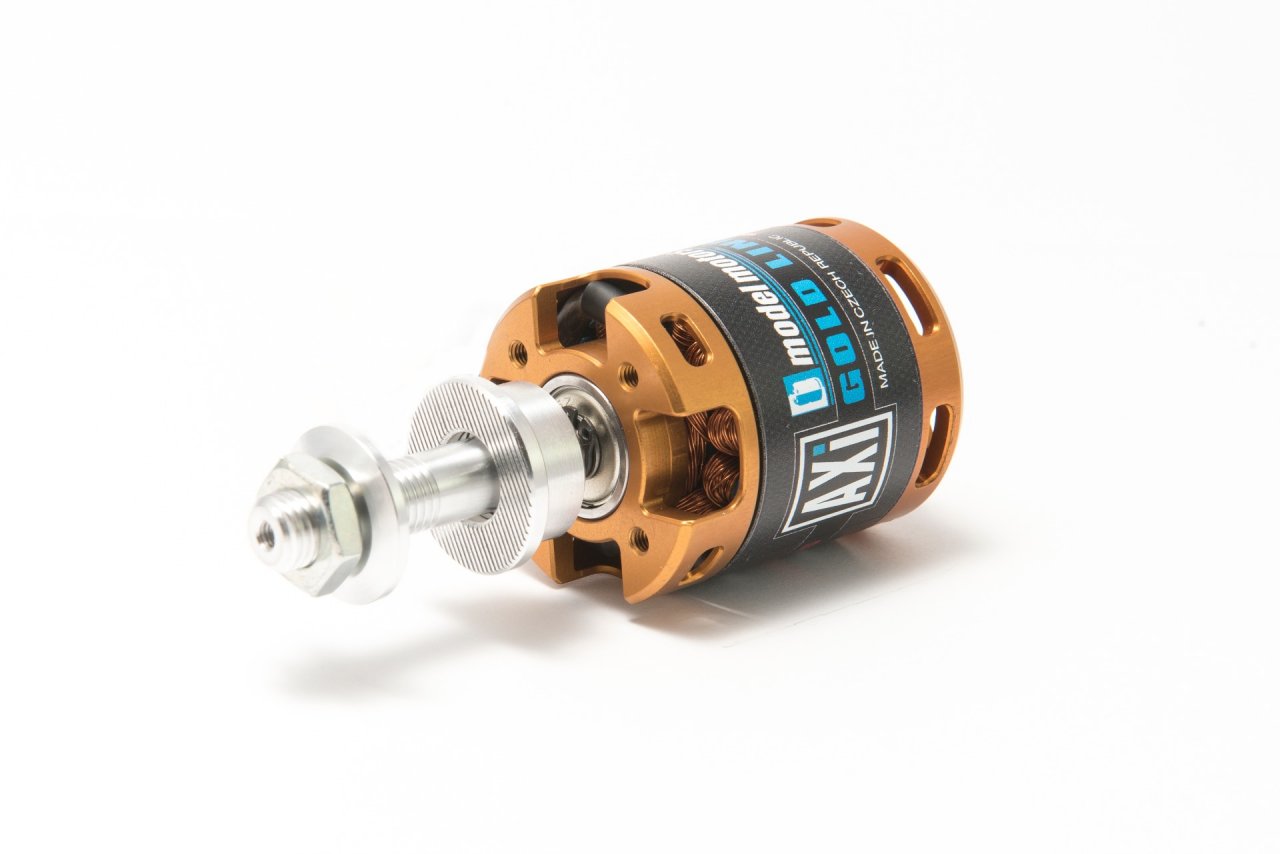

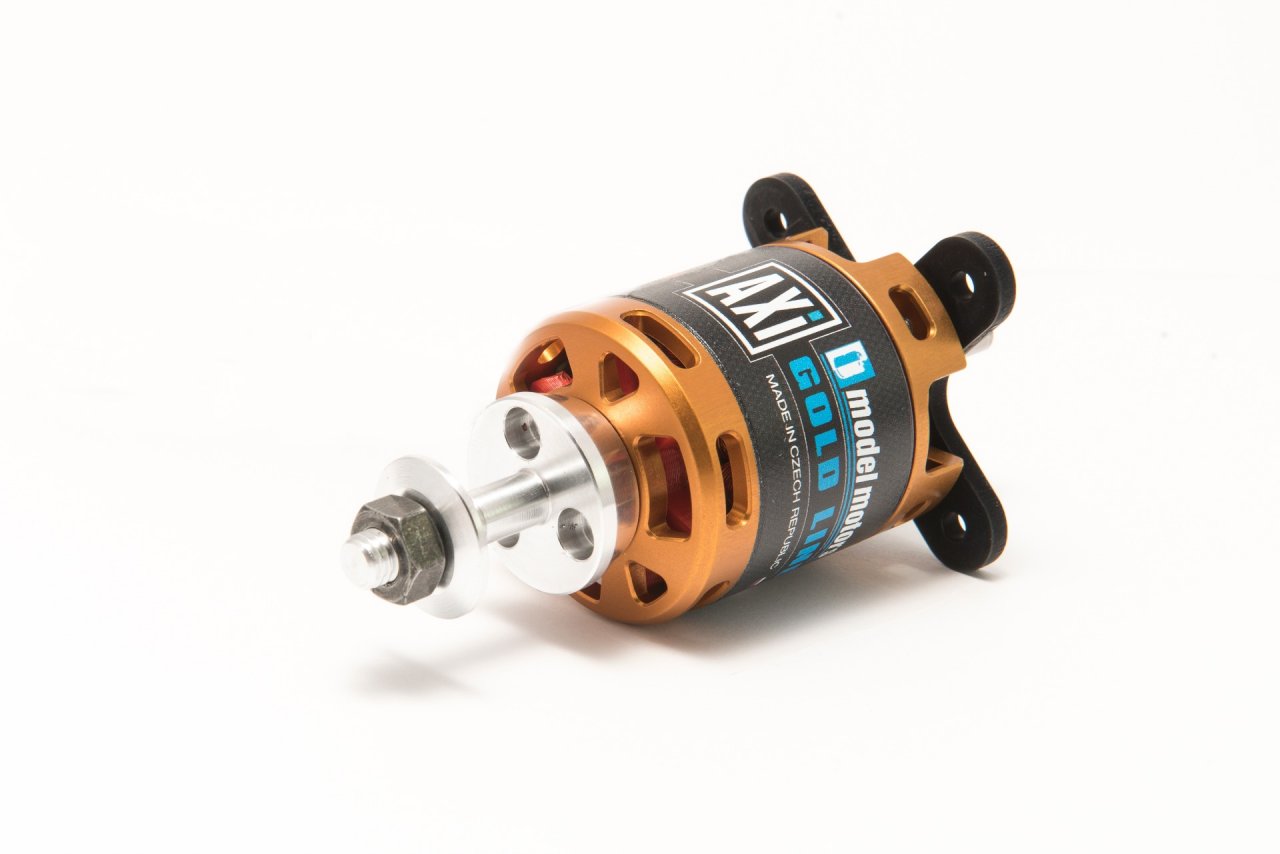

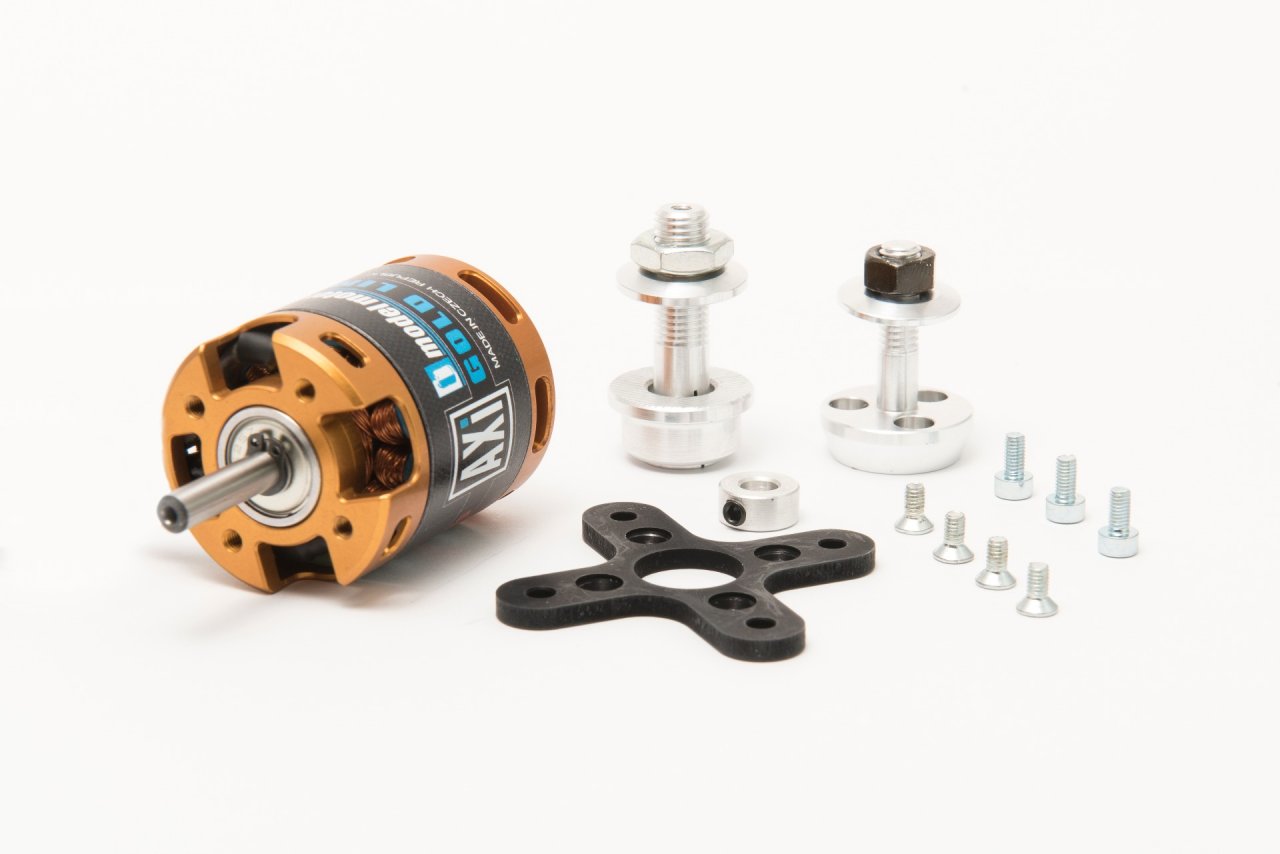

Hardened steel shaft is supported by three ball bearings. A new feature in the AXI design is a provision for radial mounting (see picture). Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.
 |
 |
 |
 |
 |
||
|---|---|---|---|---|---|---|
 |
2 600 | 91,7 | 3s | 37A/60s | 40A | 12"x5" |
|
2 000 | 70,5 | 2s | 37A/60s | 40A | 13"x8" |
 |
2 000 | 70,5 | 3s | 37A/60s | 40A | 12"x6" |
 |
1 500 | 52,9 | 3s | 37A/60s | 40A | 13"x4" |
 |
2 400 | 84,7 | 3s | 37A/60s | 40A | 12"x6,5" |
 |
5 ccm / .32 - 2stroke .40 - 4stroke | |||||
